THE10 PASSIVE LED PHANTOM
Description
Need
Specification
General
Speaker Type
10” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
10” woofer
Tweeter
1 ⅜” voice coil diameter, compression driver
Recommended ASCENDO Amplifiers
AIA2-1404,AIA2-2704, AIA4-2404, AIA8-2704, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Measured Data 120 dB (Cont.) / 130 dB (Peak) 120 dB @ 100 Hz 130 dB @ 150 Hz
Frequency Range
Measured Data (Without DSP) 100 Hz - 20 kHz / -3 dB
Power Handling
500 W
Efficiency
91 dB / 1 W/m 4 pi, 97 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
Input
Input Terminal
4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
630 | 270 | 171.3 (With grille: 178.2)
Dimensions (W/H/D) inch (Without Grille)
24 13/16 | 10 5/8 | 6 3/4 (With grille: 7)
Packing Dimensions (W/H/D) mm
760 | 400 | 330
Packing Dimensions (W/H/D) inch
29 15/16 | 15 3/4 | 13
Weight
29.76 lbs | 13.5 kg
Gross Weight
37.47 lbs | 17.0 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Matte black / White glossy
Mounting

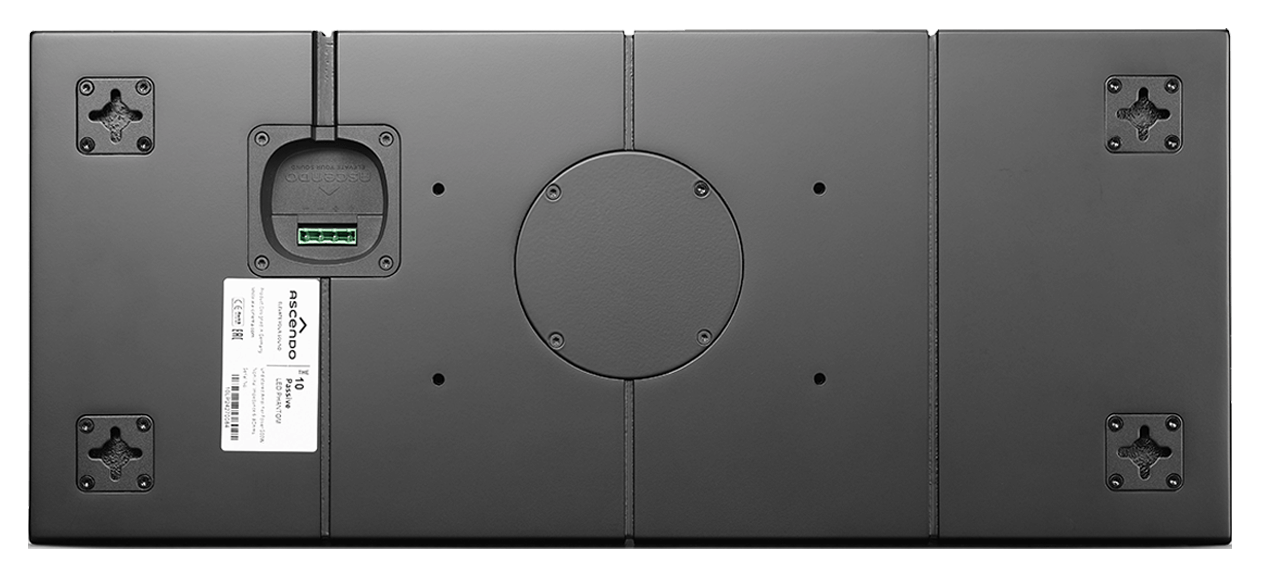

Metal wall or ceiling mounting brackets allowing further angling in two axes, 8 x wall mount brackets for multiple hanging options, VESA 200 x 100 mounting points
Name

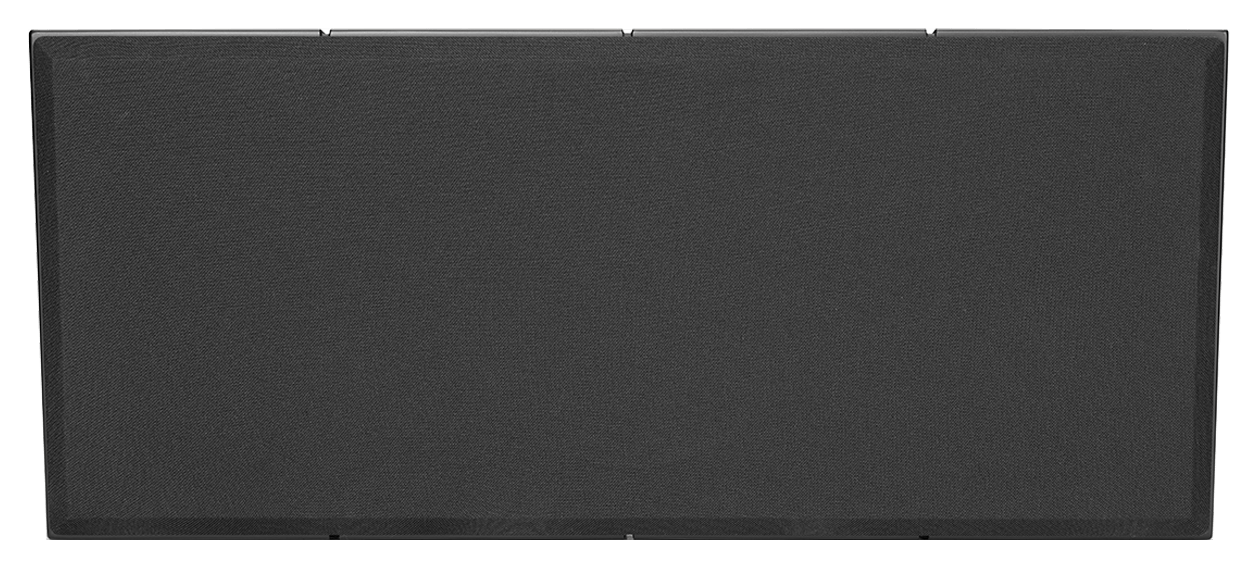

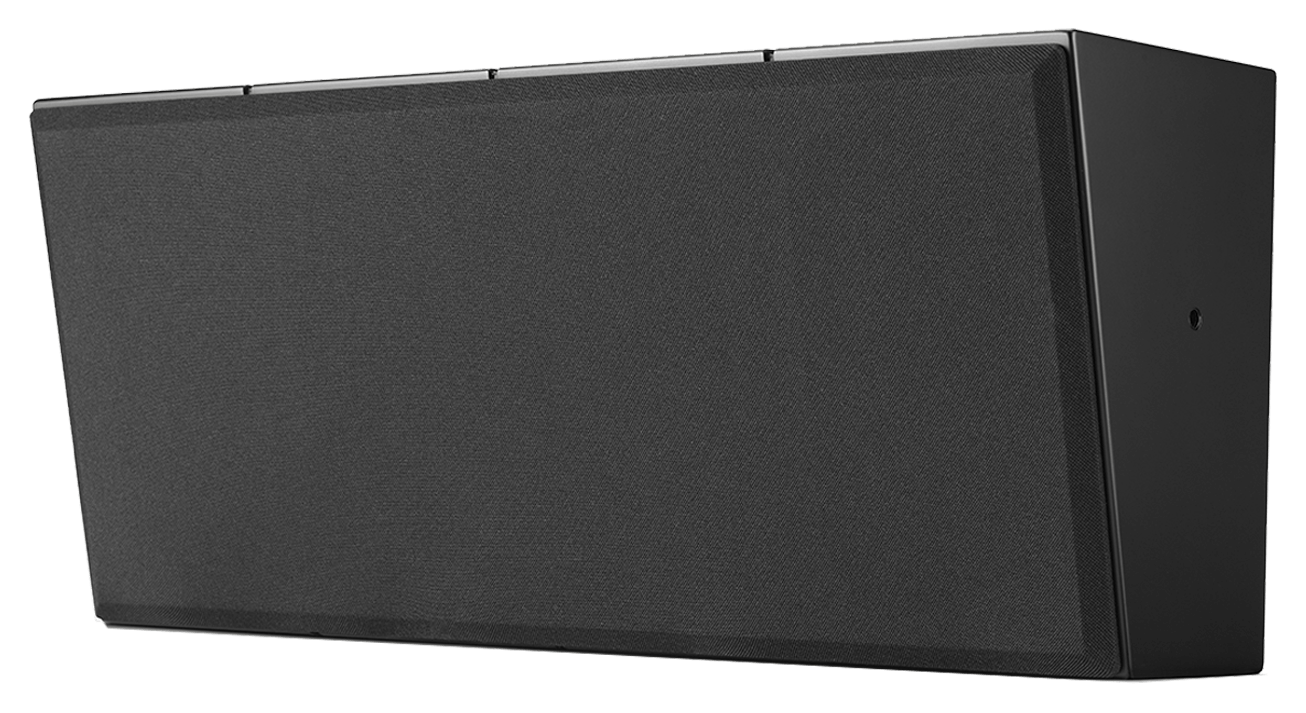

The THE10 PASSIVE LED PHANTOM is supplied with a front cover as standard
