THE12 PASSIVE ON WALL
Overview
Description

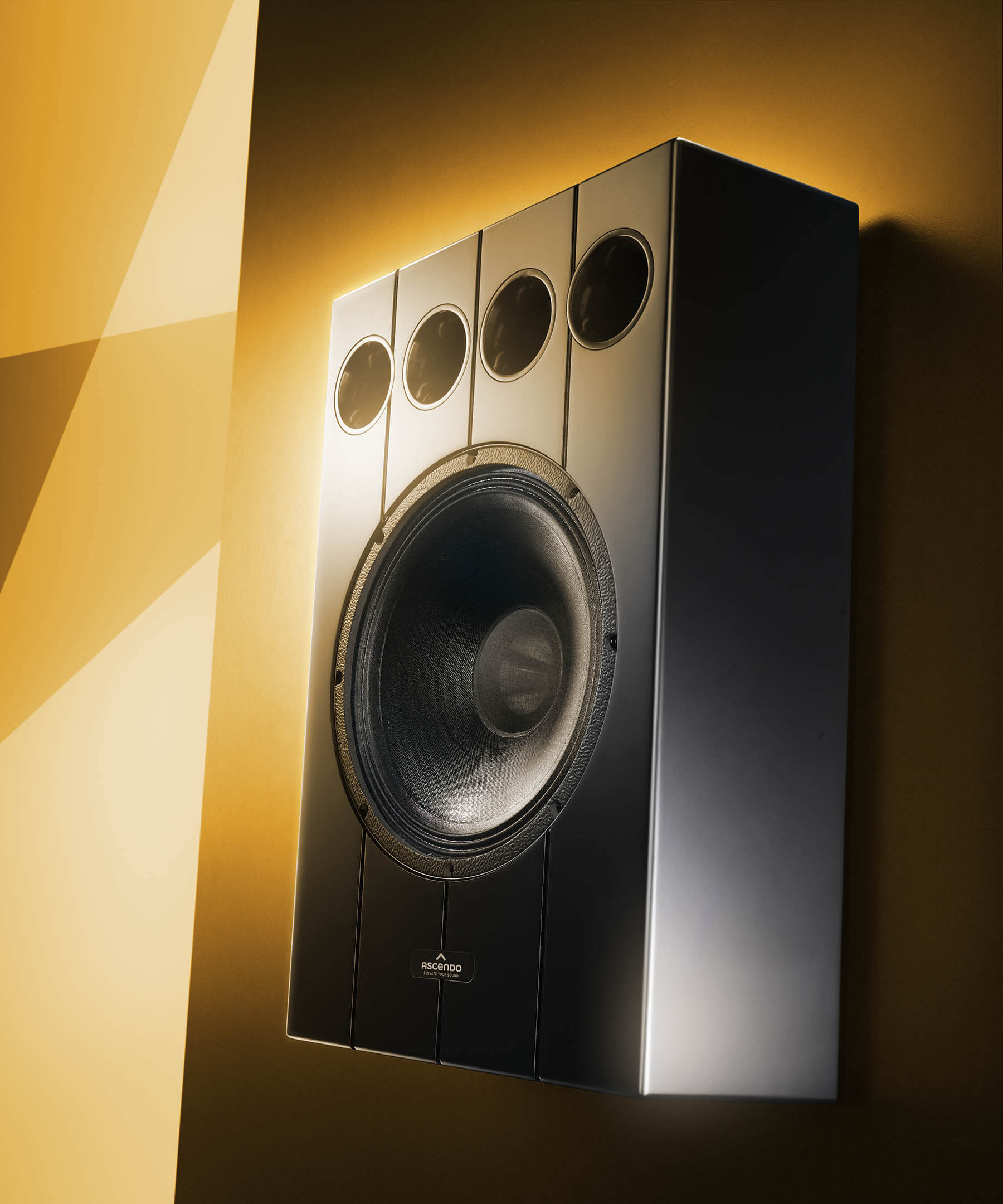

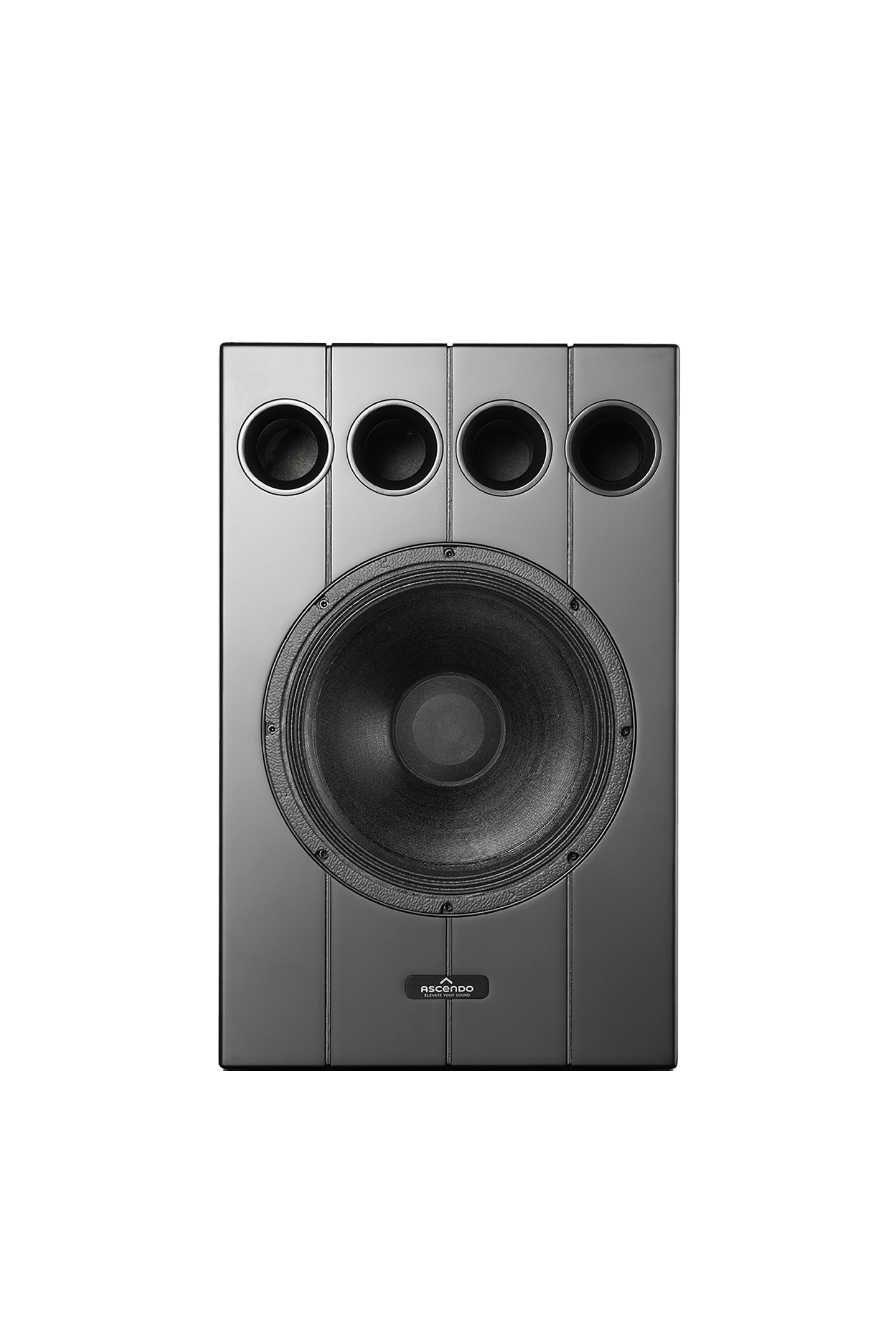

The12 PASSIVE ON WALL is positioned perfectly in the ASCENDO monitor lineup, a more dynamic and higher output alternative to the smaller The10 PASSIVE ON-WALL, and a stellar performance value compared to its more expensive, even higher-performance sibling, The12 PRO PASSIVE ON WALL.

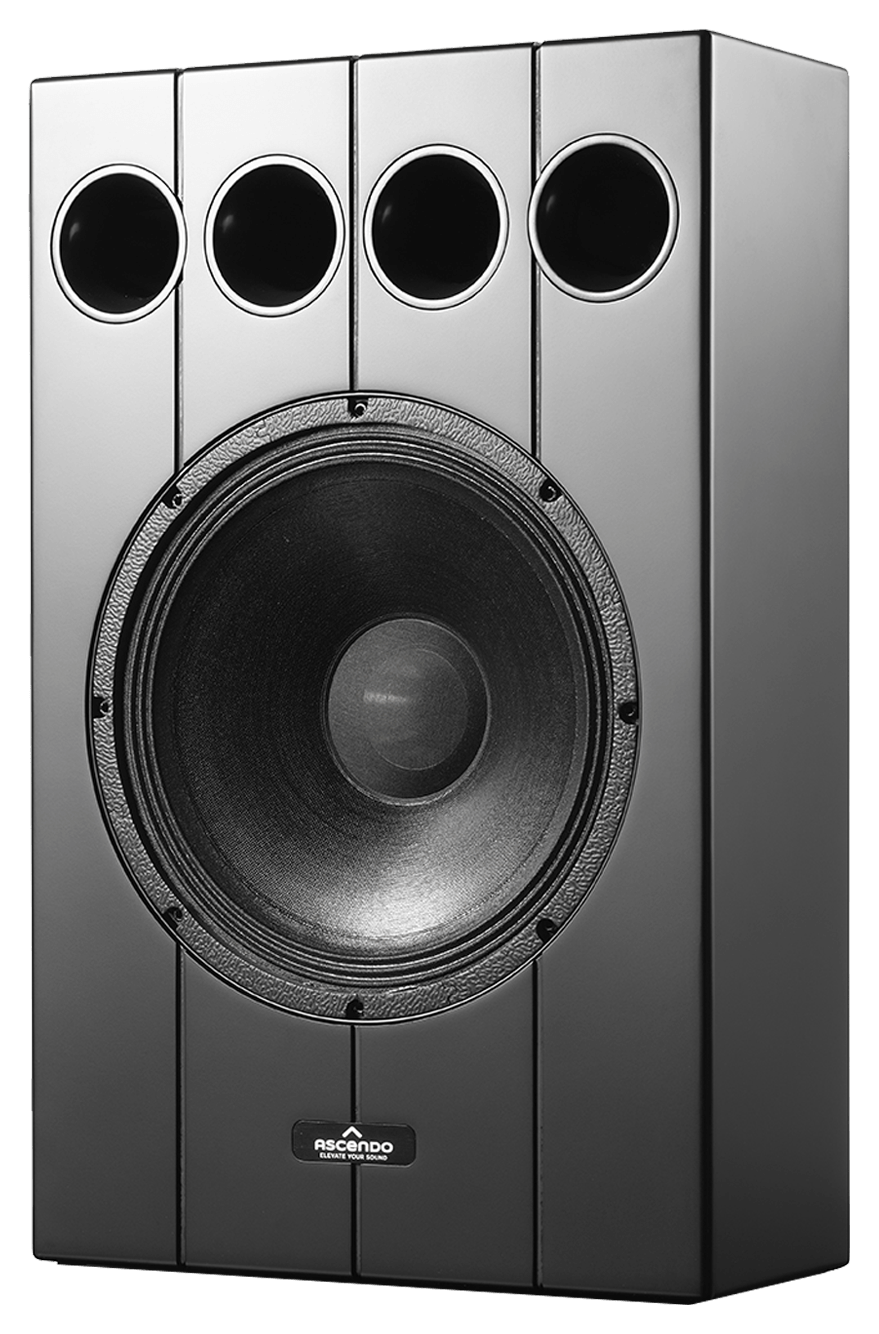

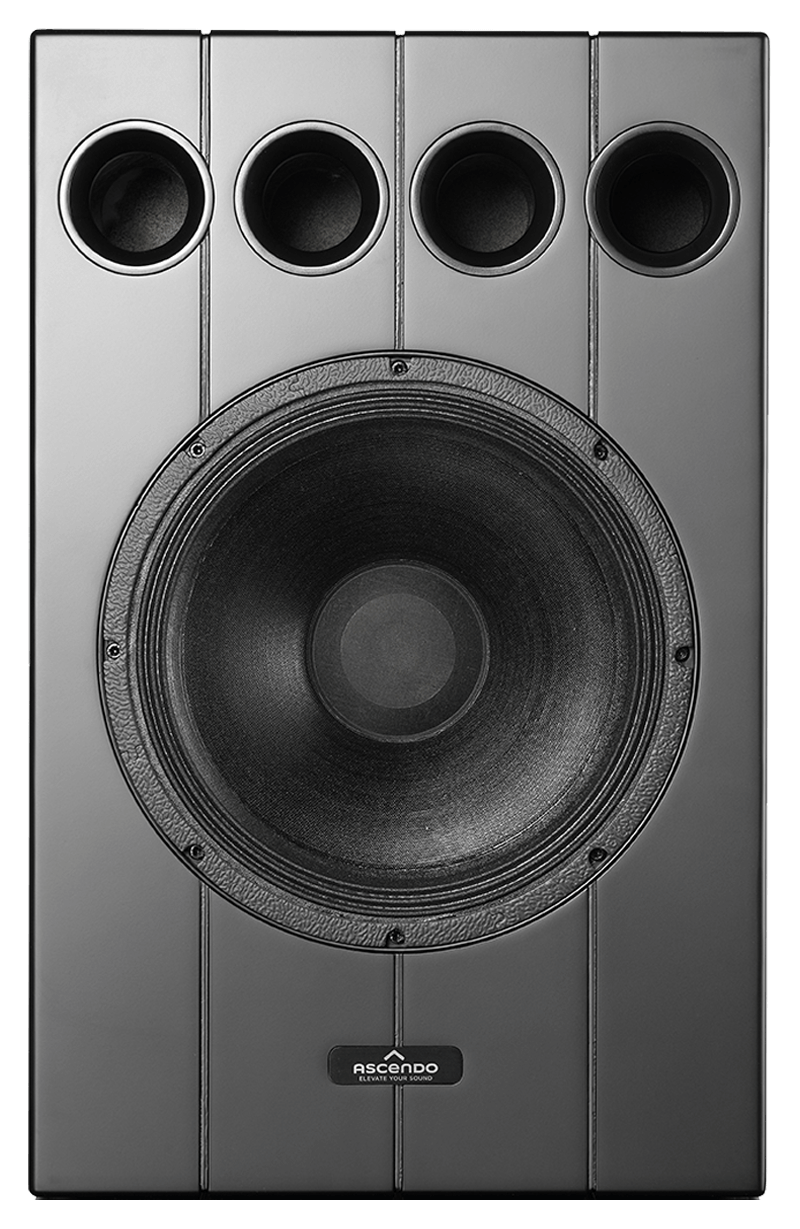

The combination of 12-inch mid-woofer and the exclusive, centrally arranged compression tweeter allows for a time-coherent and phase-accurate cinema loudspeaker a cut above the best of the cinema monitors in the market. The highly solid enclosure, elaborately conceived in the light of over 20 years of speaker design experience, ensures extraordinary stable conditions to make parasitic vibrations a thing of the past.
This is time-coherent rendering of all acoustic events at the highest level, and The12 PASSIVE ON WALL’s extremely high efficiency makes it reach incredible volume levels and obtain an impressive cinema sound even with lower amplifier power. A perfect solution as either screen channels, or also surround channels in large home cinema.
Combined with our Reference subwoofers you will experience unprecedented spheres of sound.
The12 PASSIVE ON WALL – Impressive sound even with very low amplifier power
Specification
General
Speaker Type
12” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
12” woofer
Tweeter
3” voice coil diameter, compression driver
Recommended ASCENDO Amplifiers
AIA2-2704, AIA4-2404, AIA4-6004, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Measured Data 121 dB (Cont.) / 133 dB (Peak) 118 dB @ 60 Hz 126 dB @ 100 Hz
Frequency Range
Measured Data (Without DSP) 95 Hz - 20 kHz / -3 dB
Power Handling
600 W
Efficiency
93 dB / 1 W/m 4 pi, 99 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
Input
Input Terminal
4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
390 | 615 | 175 (With grille: 184.6)
Dimensions (W/H/D) inch (Without Grille)
15 3/8 | 24 3/16 | 6 7/8 (With grille: 7 1/4)
Packing Dimensions (W/H/D) mm
550 | 770 | 310
Packing Dimensions (W/H/D) inch
21 10/16 | 30 5/16 | 12 3/16
Weight
47.4 lbs | 22.0 kg
Gross Weight
56.22 lbs | 25.5 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Matte black / White glossy
Mounting

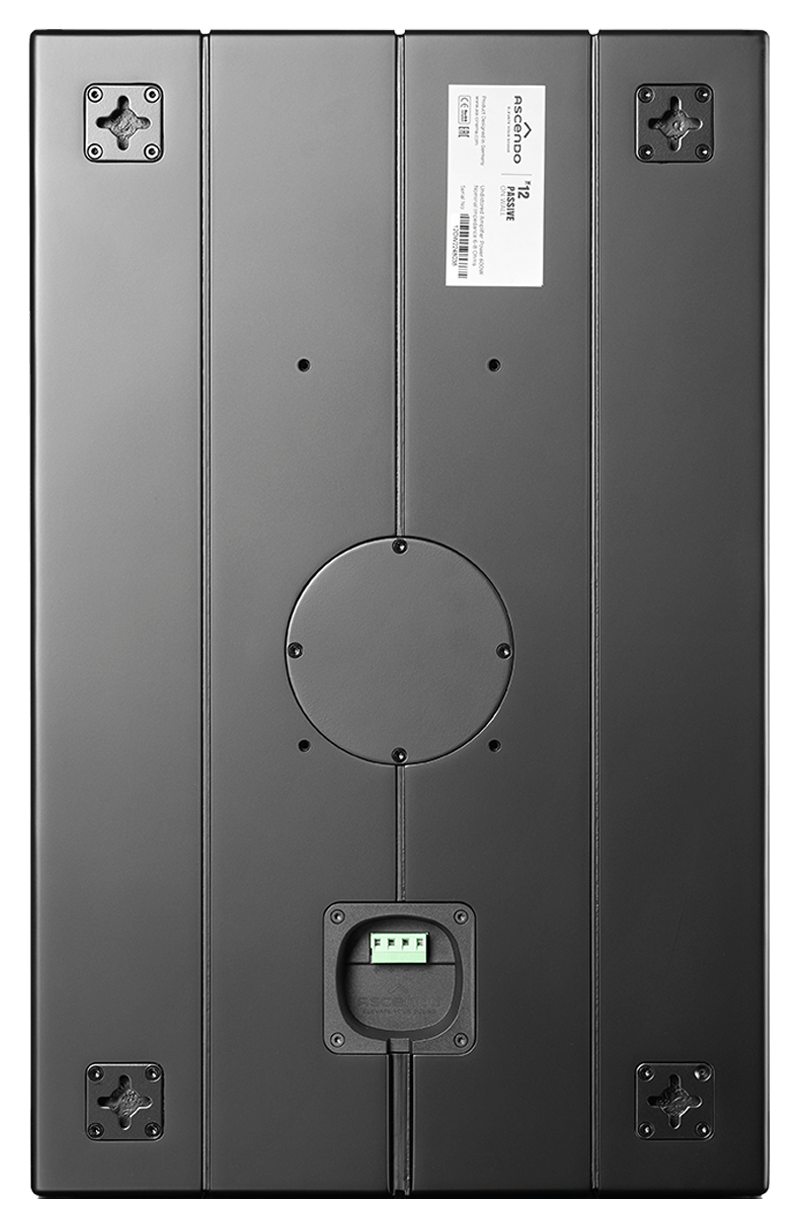

4 x wall brackets for horizontal and vertical installation, VESA 200 x 100 mounting points
Name

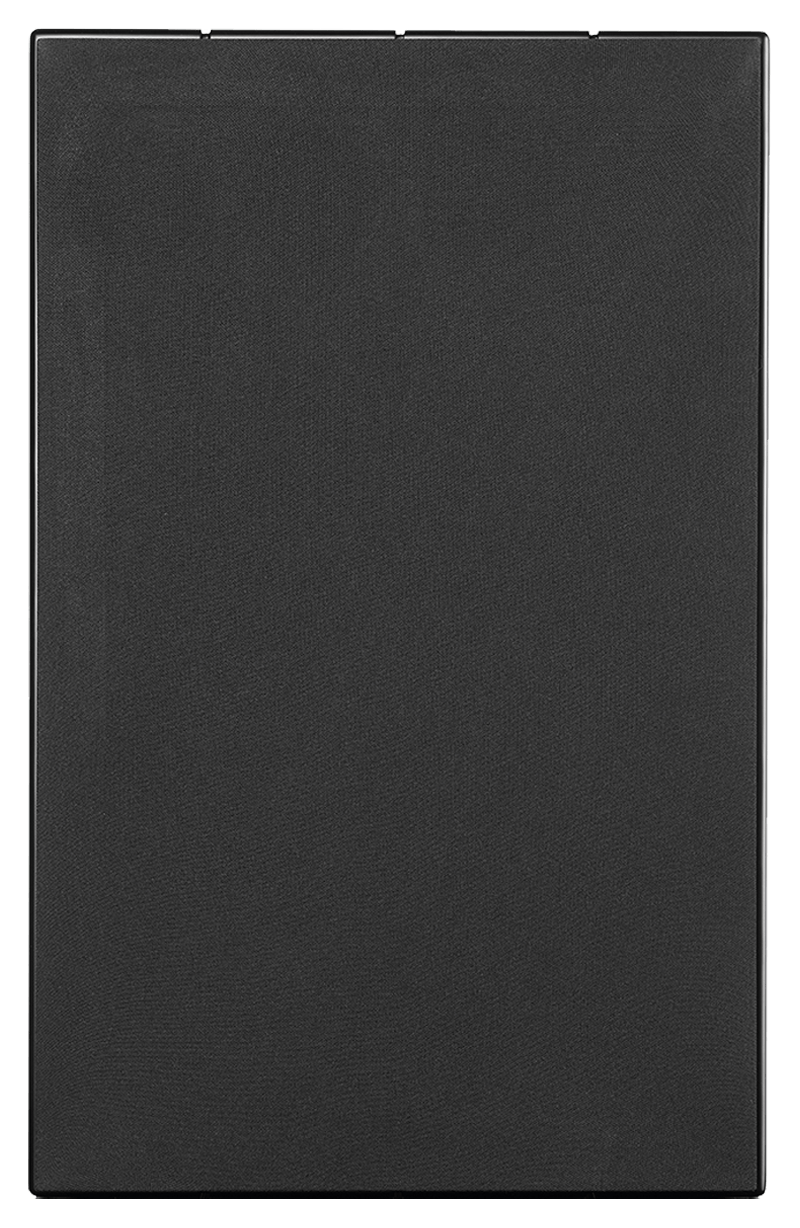

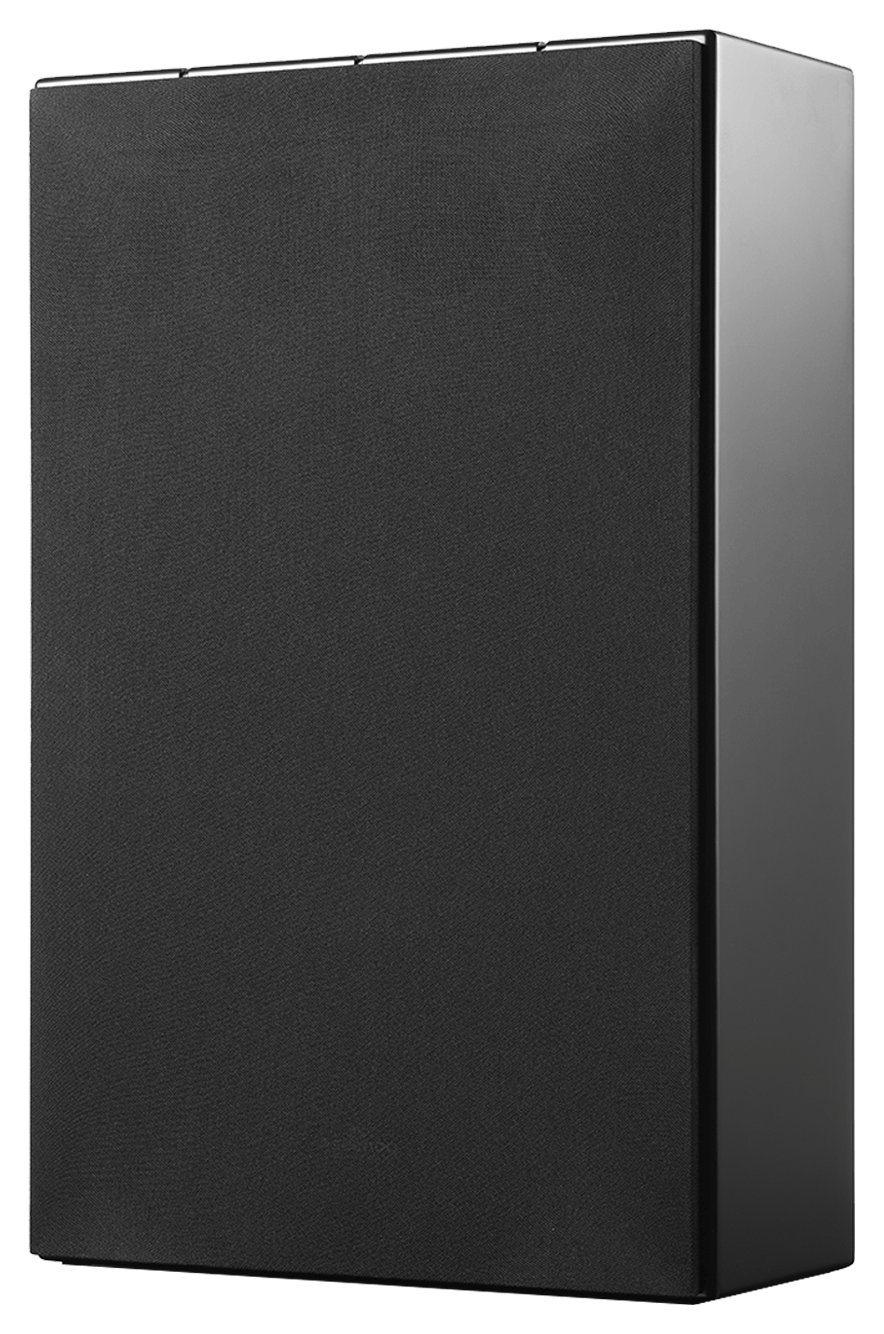

The THE12 PASSIVE ON WALL is supplied with a front cover as standard
