THE12 Be PRO PASSIVE WEDGE
Description
The design objective for this model was to offer a pre-angled version of The12 BE PRO PASSIVE that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.
The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.
The12 BE PRO PASSIVE WEDGE is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.
Specification
General
Speaker Type
12” Beryllium dome, time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
12” woofer
Tweeter
3” voice coil diameter, Beryllium dome compression driver
Recommended ASCENDO Amplifiers
AIA2-2704, AIA2-6004, AIA4-2404, AIA4-6004, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Calculated Data 123 dB (Cont.) / 135 dB (Peak) 118 dB @ 60 Hz 100 dB @ 40 Hz
Frequency Range
Calculated Data 75 Hz - 21 kHz / -3 dB
Power Handling
900 W
Efficiency
91 dB / 1 W/m 4 pi, 97 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
Input
Input Terminal
Neutrik Speakon
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
500 | 312 | 450 (Vertical) 500 | 450 | 312 (Horizontal)
Dimensions (W/H/D) inch (Without Grille)
19 11/16 | 17 11/16 | 12 5/16 (Vertical) 19 11/16 | 12 5/16 | 17 11/16 (Horizontal)
Packing Dimensions (W/H/D) mm
590 | 430 | 550
Packing Dimensions (W/H/D) inch
23 4/16 | 16 15/16 | 21 10/16
Weight
46.29 lbs | 21.0 kg
Gross Weight
55.12 lbs | 25.0 kg
Design & Mounting
Enclosure
Internally braced birch ply and MDF
Finish
Structural paint black

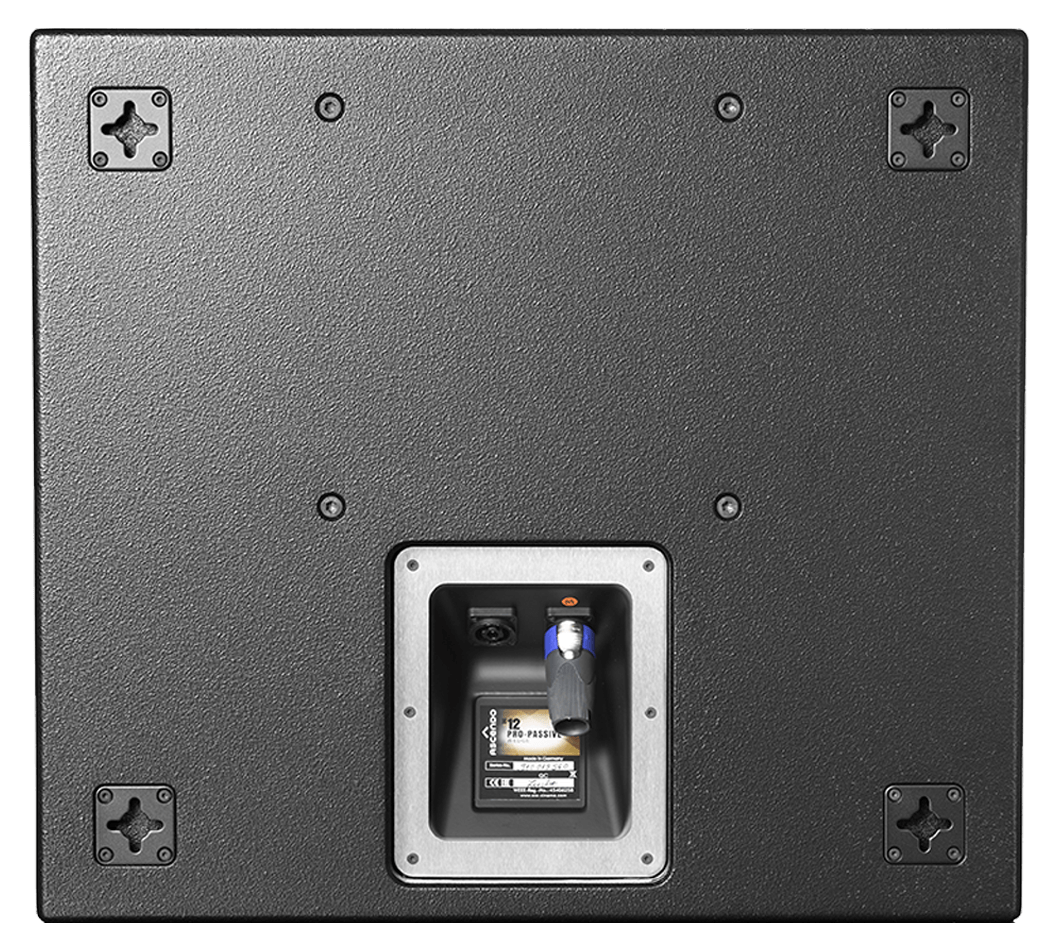

Mounting
4 x wall brackets for horizontal and vertical installation, VESA 200 x 200 mounting option
Name
The THE12 Be PRO PASSIVE WEDGE is supplied with a front cover as standard

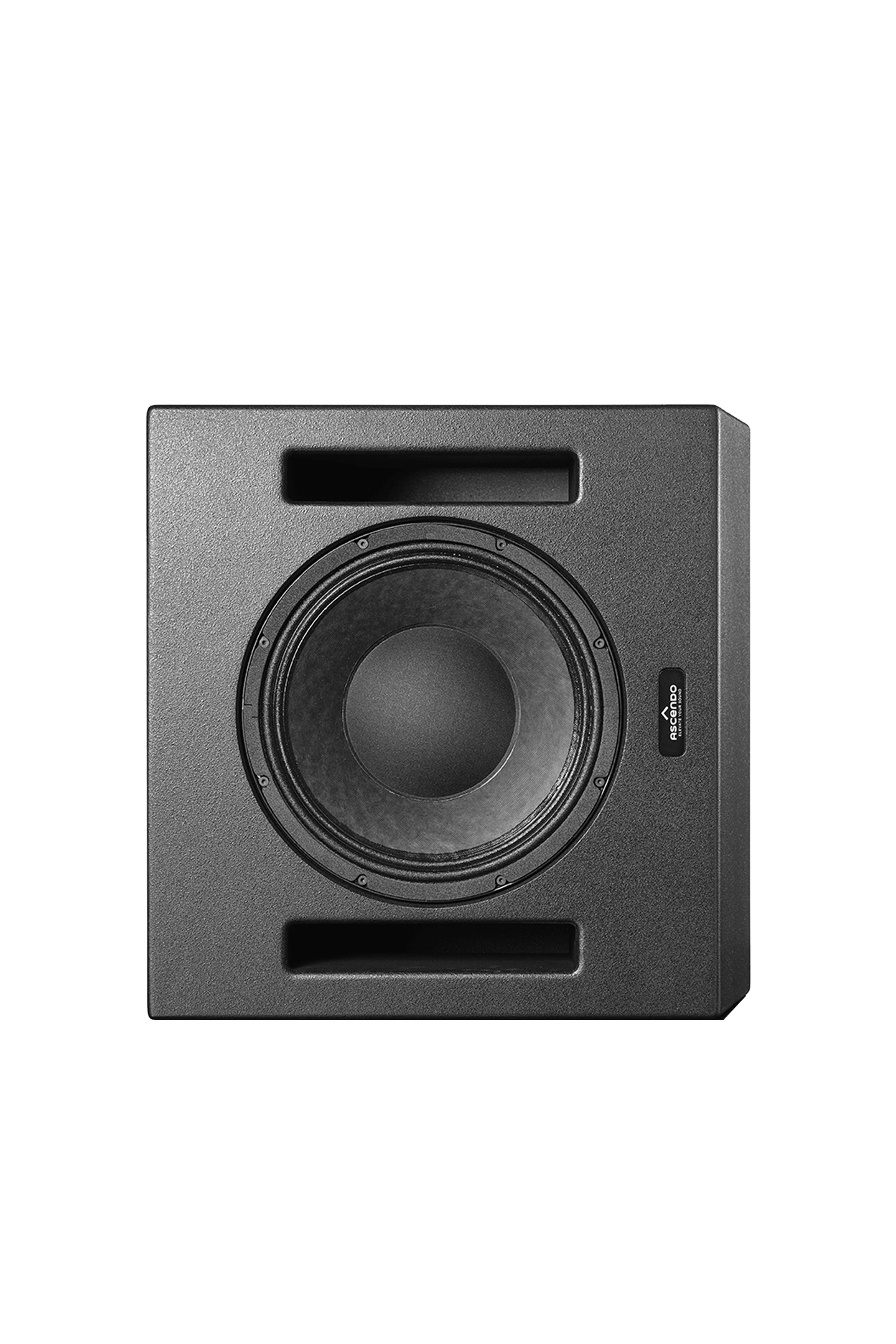

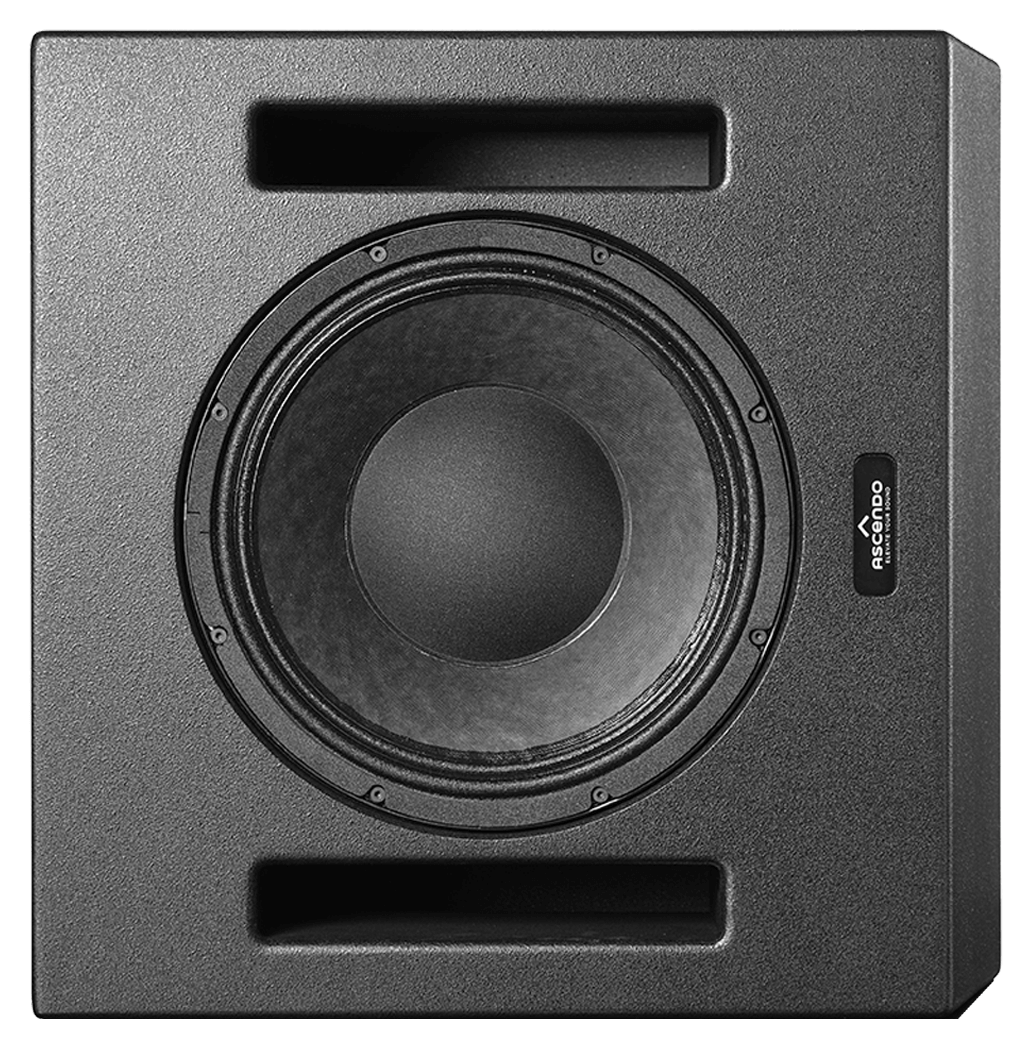

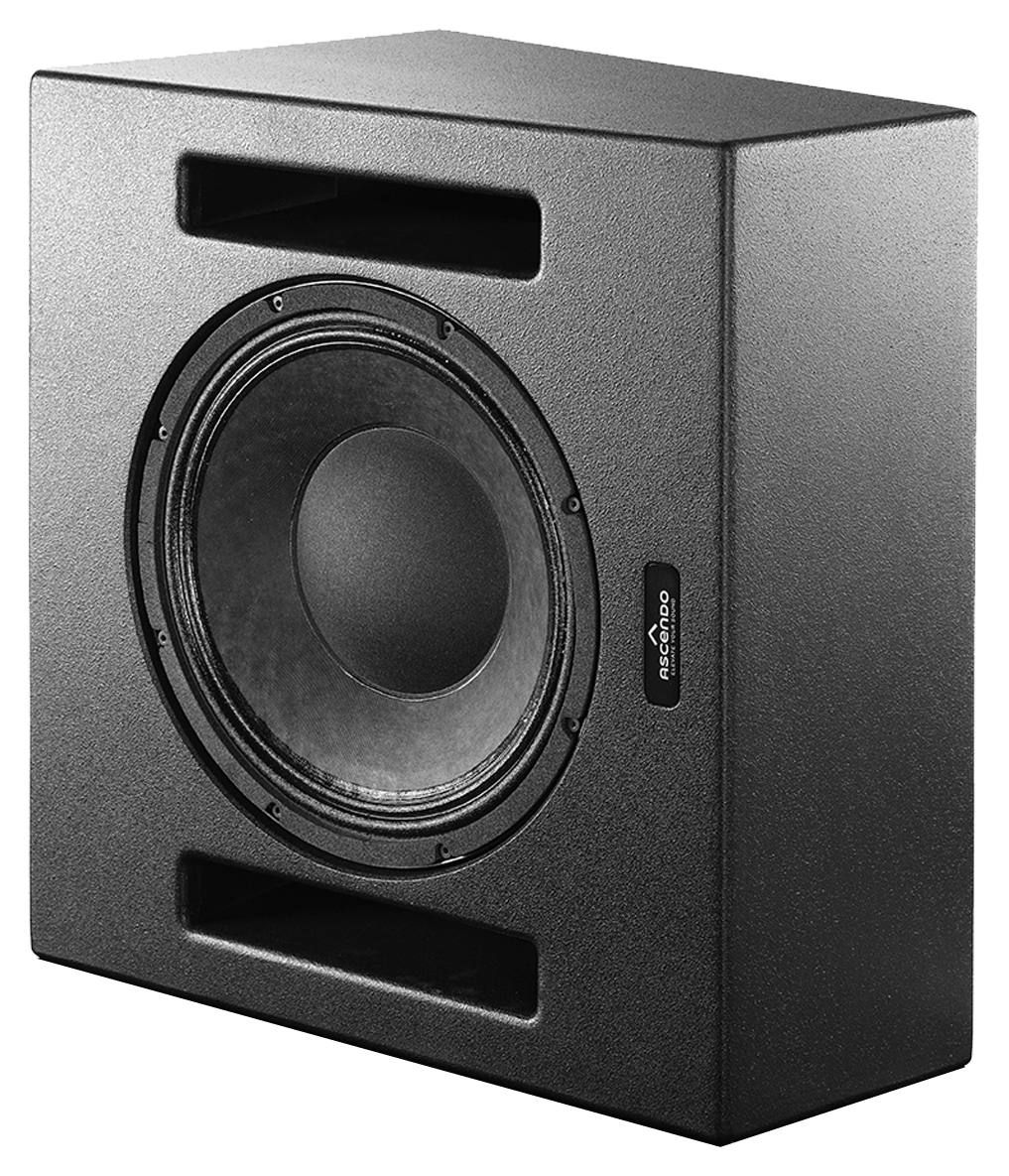

Gallery
